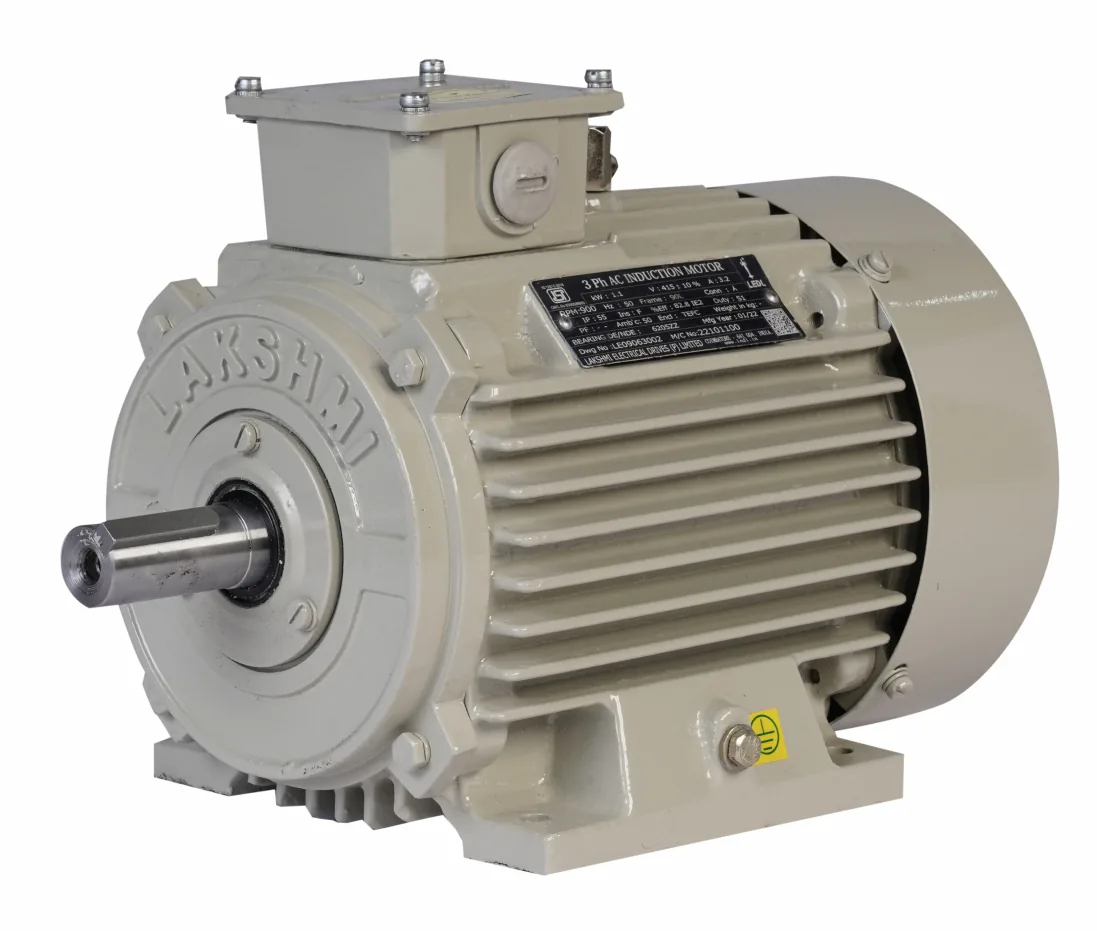

B3 Foot Mount
Induction Motor
Specifications
Governing Standard : Is12615 / IEC 60034
Protection Class : IP55, Continuous Duty (S1),
Operating Voltage : 415 +/- 10%, 50Hz +/- 5%, 3Ph AC Supply
Enclosure : Totally Enclosed Fan cooled (TEFC)
Frame : IEC 63 - IEC 280
Pole : 2,4,6,8
Terminal Box Position : Top
Insulation Class : F with temperature rise
Limited to Class : B
Ambient : -10 / +50'C
Altitude : up to 1000m above MSL
Range : 0.09kW - 90kW
Degree of Protection : IP55
Number of Leads : 3 / 6 leads
Mounting : B3,B5,B14,B35
Optional Features
Insulation Class : H
Voltage Range : 220V up to 690V
Frequency : 60 Hz
Cyclic Duty Factor : S3, S4, etc.,
Service Factor : 1.05, 1.1,1.15, 1.2,1.3, etc.,
Enclosure : IP54, 65, 66
Terminal Box Position : RHS/LHS
Inverter Duty
Higher rating in lower frame size
Special / Insulated Bearings
RTD & PTC
Forced cooling above 112 Frame
Anti - corrosive treatment C3M, C4H etc
Low vibration
Encoder mounting Provision
